PU/PVC Synthetic Leather Manufacturing Machine
The Principle & use: Release paper after PU, PVC oil or water-based resin with the liquid applied to the surface, low material after the dry cooling process, then coated with the adhesive layer, using BASE / fabric to send fit device substrate and low material compound, after drying, cooling, stripping device will be finished synthetic leather with the release paper stripped coiling; by embossing, soft lines, intaglio surface of different post-processing technology, can produce a comparable appearance in the dermis and soft to the touch comfortable, stylish varying the synthetic leather; widely used in shoes, clothing, bags, automotive interiors, home improvement and sports equipment production use.
Product introduction:
One, the basic specification, and mechanical
The release paper unwinding + paper receiving station
Release paper storage material device
1st precision coating machine
Drying box + cooling
II Precision coater
Drying box plus fitting device
Fabric sent
Drying box + cooling
Stripping trimming device
Synthetic leather take-up
Release paper take-up
Temperature: 70 ℃ -180 ℃
Main power: inverter motor drive system and pneumatic tension linked to the control system
Mechanical speed :5-40M / min
The Principle & use
Release paper after PU, PVC oil or water-based resin with the liquid applied to the surface, low material after the dry cooling process, then coated with the adhesive layer, using BASE / fabric to send fit device substrate and low material compound, after drying, cooling, stripping device will be finished synthetic leather with the release paper stripped coiling; by embossing, soft lines, intaglio surface of different post-processing technology, can produce a comparable appearance in the dermis and soft to the touch comfortable, stylish varying the synthetic leather; widely used in shoes, clothing, bags, automotive interiors, home improvement and sports equipment production use.
Types of fabric: knitted, woven, cotton, chemical fiber, BASE and other fabrics
Heating mode of heat sources: steam or hot kerosene
The release paper unwinding + paper receiving station
Release paper storage material device
1st precision coating machine
Drying box + cooling
II Precision coater
Drying box plus fitting device
Fabric sent
Drying box + cooling
Stripping trimming device
Synthetic leather take-up
Release paper take-up
Temperature: 70 ℃ -180 ℃
Main power: inverter motor drive system and pneumatic tension linked to the control system
Mechanical speed :5-40M / min
The Principle & use
Release paper after PU, PVC oil or water-based resin with the liquid applied to the surface, low material after the dry cooling process, then coated with the adhesive layer, using BASE / fabric to send fit device substrate and low material compound, after drying, cooling, stripping device will be finished synthetic leather with the release paper stripped coiling; by embossing, soft lines, intaglio surface of different post-processing technology, can produce a comparable appearance in the dermis and soft to the touch comfortable, stylish varying the synthetic leather; widely used in shoes, clothing, bags, automotive interiors, home improvement and sports equipment production use.
Types of fabric: knitted, woven, cotton, chemical fiber, BASE and other fabrics
Heating mode of heat sources: steam or hot kerosene
technical parameter:
Second, type: COM knife fine coated
Purpose: the surface of release paper, PU glue, PVC plastic
Features: high-precision coating roller and precision comma knife processing to ensure that the fine-tuning of the high-precision gap, the gap control accuracy (± 0.03), the coating weight is stable and uniform;
The man-machine interface touch screen controls, convenient, intuitive operation;
Advance and retreat of the knife and jump the Yiu use low-friction cylinder, electric control action is more sensitive and accurate;
The motor adopts frequency control system, the adjustment range PLC control.
Third, the drying oven
Features:
Independent drying system design nozzle air flow and temperature uniformity;
Oven on both sides of special specially designed magnetic door switch, easy to clean, repair;
Streamlined design of the appearance;
PID automatic temperature control system and a new and efficient closure of the entire oven;
Fourth, the water cycle cooling
Features: cooling roller S-type arrangement, the cooling effect is good;
Fifth, the fitting device
Sixth, the synthetic leather / release paper take-up
7, electrical cabinets
Purpose: the surface of release paper, PU glue, PVC plastic
Features: high-precision coating roller and precision comma knife processing to ensure that the fine-tuning of the high-precision gap, the gap control accuracy (± 0.03), the coating weight is stable and uniform;
The man-machine interface touch screen controls, convenient, intuitive operation;
Advance and retreat of the knife and jump the Yiu use low-friction cylinder, electric control action is more sensitive and accurate;
The motor adopts frequency control system, the adjustment range PLC control.
Third, the drying oven
Features:
Independent drying system design nozzle air flow and temperature uniformity;
Oven on both sides of special specially designed magnetic door switch, easy to clean, repair;
Streamlined design of the appearance;
PID automatic temperature control system and a new and efficient closure of the entire oven;
Fourth, the water cycle cooling
Features: cooling roller S-type arrangement, the cooling effect is good;
Fifth, the fitting device
Sixth, the synthetic leather / release paper take-up
7, electrical cabinets
Sample display:

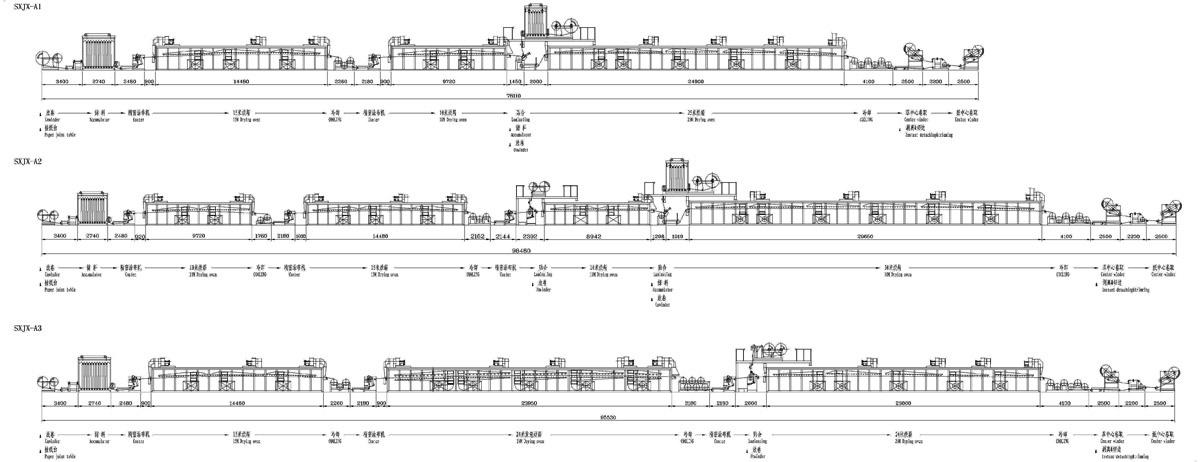

Composition figure
